Extra Features

Once you're familiar with the basics of iNZight, you can try out some of the more advanced features.

iNZight Display Mode​

iNZight (> 3.0) has two display modes: the traditional all-in-one window, as well as a separate graphics window and a narrow control panel (like VIT).

iNZight Home - single windowiNZight Home - dual window

To switch between the two, go to File > Preferences, and check the box "Use dual-window display mode".

Colour Specification​

In many of the Colour specification windows, you can either select from the menu, or type in a value of your own. Colours can specified by the name of any colour known by R, or alternatively by using hexadecimal (HEX) codes.

To specify a HEX code, you enter a hash "#" followed by 6 digits (numbers 0-9 and/or letters A-F). The 6-digit HEX code is divided into three 2-digit codes that specify red, green, and blue, respectively. 00 corresponds to 0%, and FF corresponds to 100%. Some examples are:

  • #000000 = black
  • #FFFFFF = white
  • #0000CC #009900 #FF0000 #c09040

Opacity​

You can also specify opacity when using HEX codes. This is done simply by adding two additional digits (forming an 8-digit code), where 00 = 0% opacity = completely invisible.

Export Interactive HTML Graphs​

Developmental Feature

This feature is still a work-in-progress. Please play around with it and let us know what you like, what doesn't work so well, and any other feedback you have!

A feature of iNZight is the ability to export plots as SVG and Interactive HTML pages.

Let's load the gapminder-2008 data from the FutureLearn module:

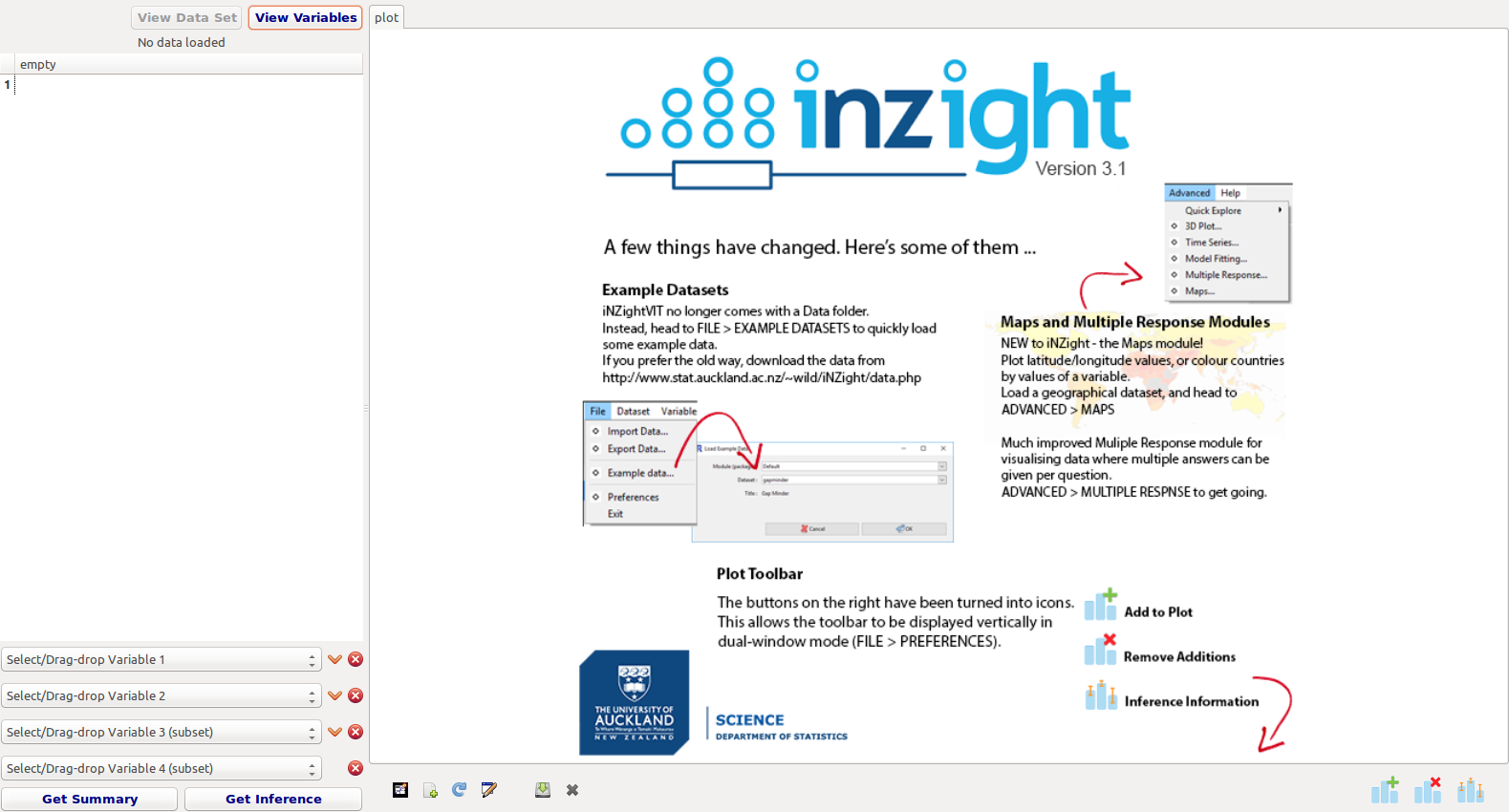

iNZight Home

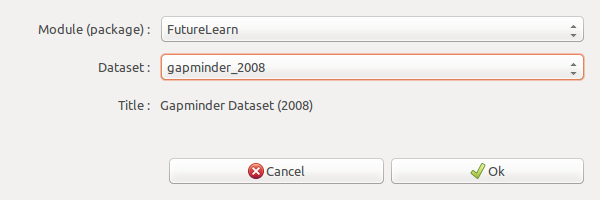

File > Example Data and select the Gapminder 2008 dataset:

Example Data - gapminder_2008

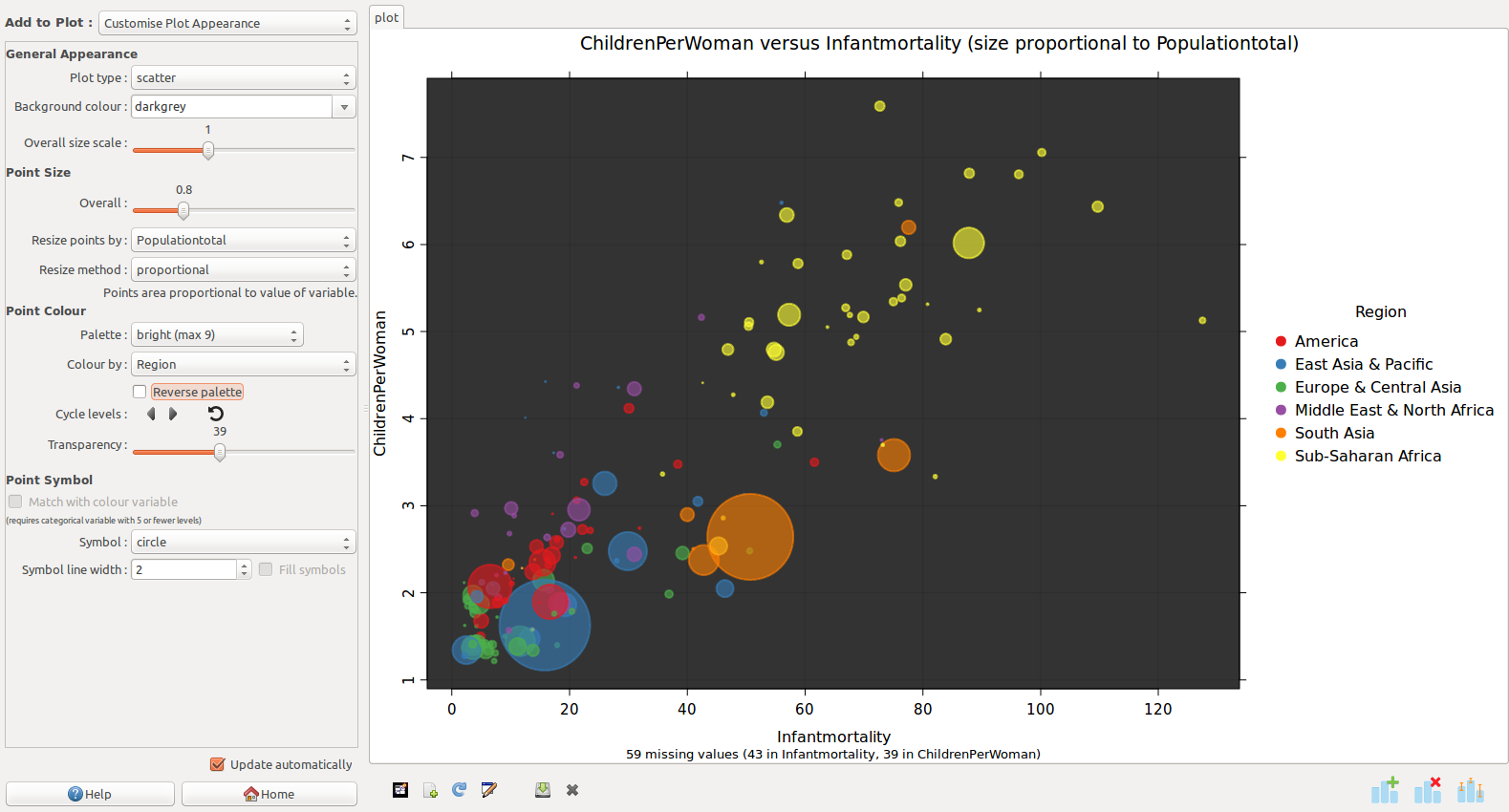

Now plot some variables. Here we're using ChildrenPerWoman and Infantmortality, coloured by Region and sized by Populationtotal, but you can use whichever you prefer.

Gapminder plot

Now click the "Save" icon in the plot toolbar, or from the Plot menu.

Save dialog
  • File type: choose "Interactive HTML"
  • Save location: You can leave this as default, which is the iNZightVIT/Saved Plots folder in your Documents.
  • File name: choose something appropriate
  • Additional variable: We've selected "Country" as an additional variable to export, so we can use it to label points.

Once you click save, you might be prompted to install additional packages. Click "Yes" and wait while that happens, then you can save again.

The HTML file will open in your browser.

  • Hover your mouse over points to see details about that observation
  • Click points to add to selection, and "View Table" to see the rows of the data set for those observations
  • Click-and-drag to select a region of points
  • Click a legend label to highlight points in that group
